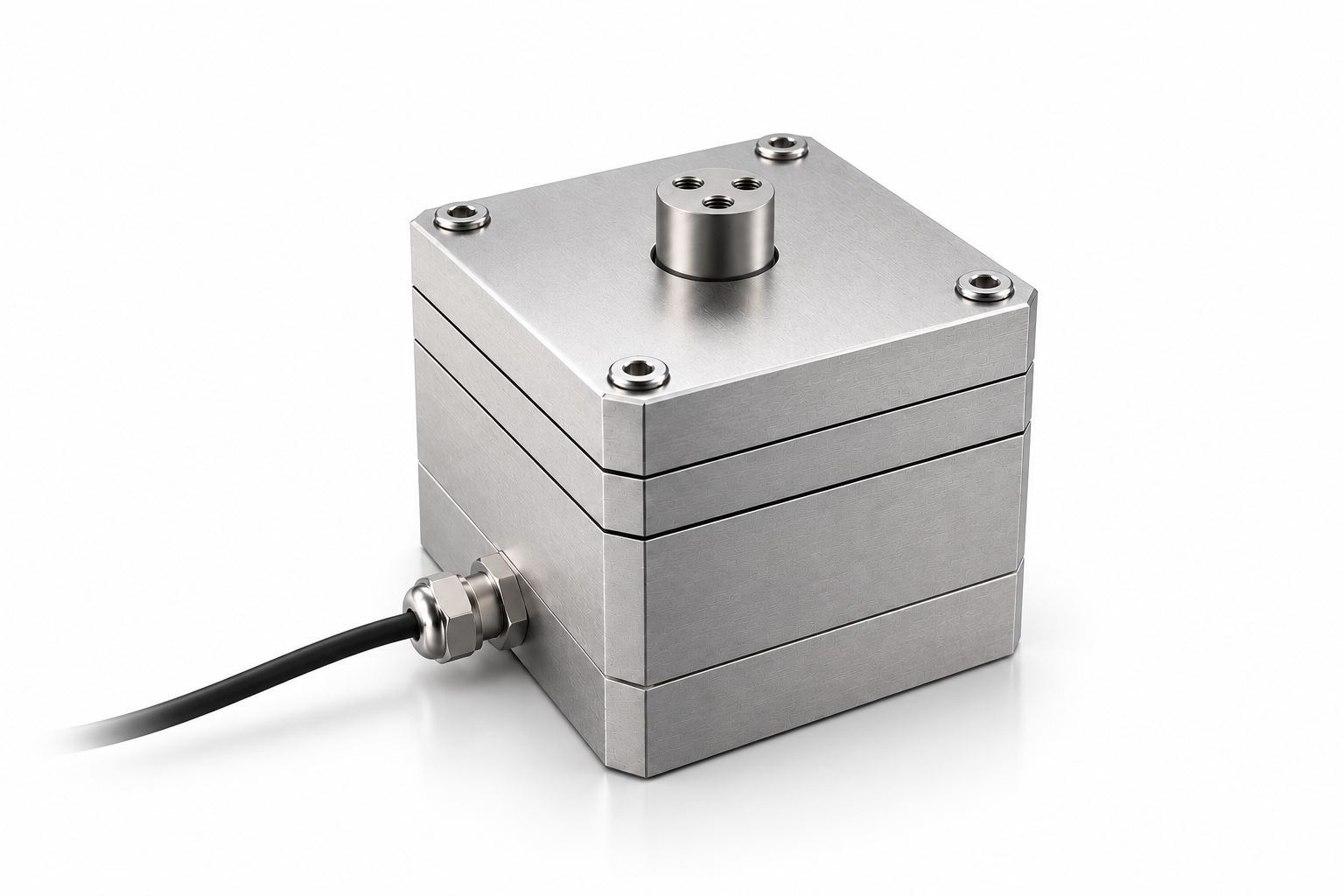

Development Kit - ‘Rhino’
Our development kit brings reluctance actuator technology to life, giving you everything you need to start experimenting with our Atlas actuator. The kit combines the actuator, integrated sensors, a guiding mechanism, motor driver, and plug-and-play electronics for easy integration.
Experience the technology hands-on, explore its potential for high-precision applications, and get familiar with its operation before moving to your own designs.
Key Advantages
Force-Dense
& Efficient
5× higher motor constant
than voice coil actuators.
Long Travel Range
Larger stroke than piezo, without flexure amplification.
Supply Chain Independence
No rare-earth magnets means less geopolitical supply risks.
Technical Specifications
| Parameter | Value |
|---|---|
| Peak Force | 21.0 N |
| Continuous Force | 2.7 N |
| Force Resolution | ±2 mN |
| Mechanical Bandwidth | 200 Hz |
| Stroke | 500 µm |
| Continuous Motor Constant | 7 N/A |
| Dimensions | 40 × 40 × 45 mm |
| Operating Voltage | 60 V |
| Operating Temperature | -20 to 80 Celsius |
| Continuous Power Dissipation | 0.22–1.36 Watt |
Fluxthor’s reluctance actuators are highly scalable, with designs ranging from mN to kN force levels and a wide variety of sizes and geometries. For evaluation purposes, however, a smaller unit makes it easier to get started.
Applications
Common applications include:
Fast Steering Mirrors
Deformable Mirrors
Nanopositioning
Photonics Fiber Alignment
Claim your kit, free of charge
We lend the development kit to you free of charge, so you can test the technology with no strings attached.
